FLYLINE SOLAR PANEL

FLYLINE SOLAR PANEL

A photovoltaic module or photovoltaic panel is a combination of packaged interconnected assembly of photovoltaic cells, also known as solar cells. These cells are made of two layers of semiconductor material. When light enters the cell, electrons are forced to flow between the layers to produce current. With the help of Solar energy a single photovoltaic module can produce a certain amount of wattage, installations intended to produce larger electrical power capacity require an installation of several modules or panels and this is known as a photovoltaic array. The Photovoltaic electric cell uses generate electrical energy when the surface of the cell is exposed to electromagnetic radiation. In kerala climate 1000 W solar panels can create between 4 Kwh to 4.5 Kwh electricity per day.

here are three types of solar panels poly-crystalline, mono-crystalline and Mono PERC solar cells. They are made-up of silicon. The main difference is that the poly-crystalline material is made up of millions or billions of small silicon crystals, but Mono-crystalline material is made up of one large single crystal of silicon. The major quality difference is mono-crystalline solar panel is more efficient at converting photons to electrons for electricity while the poly-silicon is less efficient because electrons are captured or generated less efficiently where the crystals of silicon touch.Mono PERC solar cells have an additional layer with the back side of the cell. This layer allows some of the sun’s rays to reflect back into the solar cell, gives them an opportunity to be turned into energy. So that , this cells produce huge amount of energy than conventional cells. Poly-crystalline panels are commonly used because the manufacture cost is less and so we get these panels in competitive price. Mono crystalline solar cells can create current at cloudy condition and even when it is raining Murickens group market these high quality ISO certified solar panels in whole sale and retail price in kerala.We are using Five busbars (5BB) cells. We can convert any branded Normal inverter to solar power with the help of using recommended capacity of Flyline solar charge control and solar panel.





FEATURES OF SOLAR CELLS


►Highly quality solar Photovoltaic Silicon Mono / Multi crystalline panels or Cells.
►German cells assures the quality of product.
►It is union of solar cells for desired capacity.
►Light weight and designed for getting maximum utilization.
►Resistant to abrasion, hail impact, rain, water and environmental factors.
►Anodized aluminum frame and pre-drilled mounting holes.
►Tempered glass for rugged protection.
►ISO 9001 certified.
►IEC 61215 certification by EuroTest and TUV.
►5 years warranty.
►In kerala climate 1000 W Solar panels can create between 4.5 Kwh to 5 Kwh electricity per day.
Different wattage panel is available like 25W, 50W, 100W, 125W, 275W, 315W, 335W, 345W, 390W, 420W and 540W

SOLAR PANEL TECHNICAL SPECIFICATION

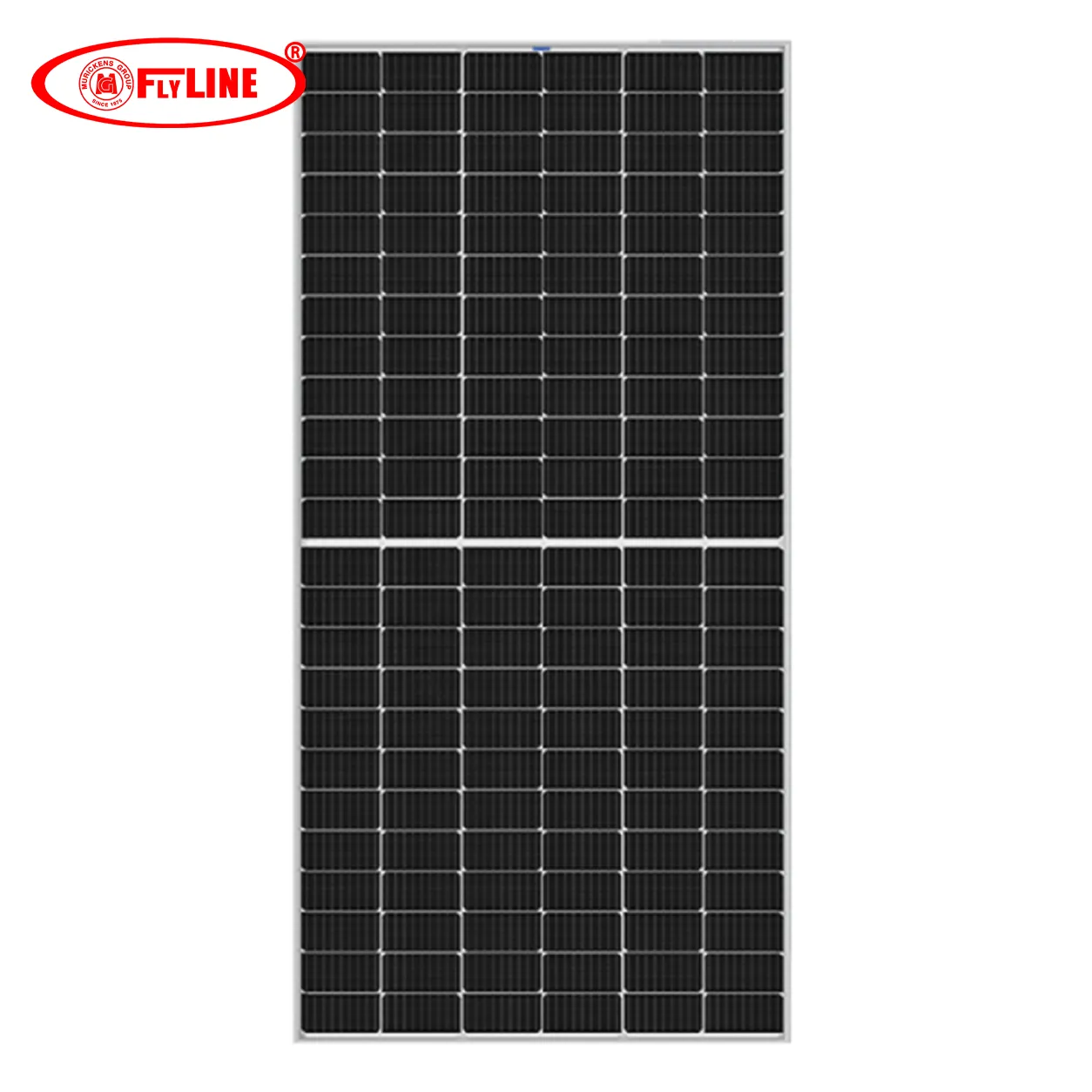

1. CELL TYPE - MONO CRYSTALLINE /MONO PERC

Cell Type - Mono Crystalline /Mono Perc
Nominal Max. Power (Pmax)
315 W 390 W 420 W 540 W
Opt OperatingVoltage (Vmp)
38.15 V 40.74 V 44.9 V 50.5 V
Opt. Operating Current (Imp)
8.2 A 9.2 A 9.37 A 12.37 A
Open Circuit Voltage (Voc)
33.40 V 49.87 V 53.8 V 69.17V
Short Circuit Current (Isc)
9.70 A 9.75 A 9.80 A 12.57A
Module Efficiency
18.38% 19.64% 20.37% 21%
Max. Series Fuse Rating
15 A 15 A 15 A 15 A
Application Classification
Class A Class A Class A Class A
module weight
22 Kg 22 Kg 22 Kg
32.4Kg
Power Tolerance
0 ~ + 5 W 0 ~ + 5 W 0 ~ + 10 W 0 - + 10 W
M.Size 1600x995mm 1988x1005mm 2078x992mm 2266x1135mm
Max. System Voltage 1500V (IEC) or 1000V (IEC
Operating Temperature 40°C ~ +85°C
Module Fire Performance CLASS C (IEC 61730)




2. POLY/MULTI CRYSTALLINE

Cell Type - Poly /Multi Crystalline
Nominal Max. Power (Pmax)
275 W 335 W 345 W
Opt. Operating Voltage (Vmp) 35 V 37.90 V 38.21 V
Opt. Operating Current (Imp) 8.2 A 08.85 A 09.07 A
Open Circuit Voltage (Voc) 40 V 46.27 V 46.33 V
Short Circuit Current (Isc) 9.5 A 09.41 A 9.68 A
Module Efficiency 18.38% 18.38% 19.5%
Max. Series Fuse Rating 15 A 15 A 15 A
Application Classification Class A Class A Class A
M.size 1600x995mm 1663x987mm 1985x1000mm
module weight 18.2Kg 18.2Kg 21.8Kg
Power Tolerance 0 ~ + 5 W 0 ~ + 5 W 0 ~ + 5 W
Max. System Voltage 1500V (IEC) or 1000V (IEC)
Operating Temperature 40°C ~ +85°C
Module Fire Performance CLASS C (IEC 61730)




3. CELL TYPE - POLY / MULTI CRYSTALLINE 12V

Cell Type - Poly /Multi Crystalline 12V
Nominal Max. Power (Pmax)
25 W 50 W 75W 100 W 125 W
Opt. Operating Voltage (Vmp) 17.8 17.9 17.9 17.49 V 22.40 V
Opt. Operating Current (Imp) 1.124 A 2.84 A 4.31 A 5.94 A 7.40 A
Open Circuit Voltage (Voc) 21.4 V 21.4 V 21.4 V 21.46 V 23.8 V
Short Circuit Current (Isc) 1.305 A 3.28 A 4.76 A 6.39 A 6.45 A
Module Efficiency 17% 18.8% 19% 19% 19%
Max. System Voltage 1000V (EU) 1000V (EU) 1000V (EU) 1000V (EU) 1000V (EU)
Max. Series Fuse Rating 10.A 10.A 10.A 10.A 10.A
module weight 1.05 KG 3 KG 6 KG 7 KG 8 KG
Operating Temperature 40°C ~ +85°C
Power Tolerance 0 ~ + 3 W



Electrical Parameters at Standard Test Condition
